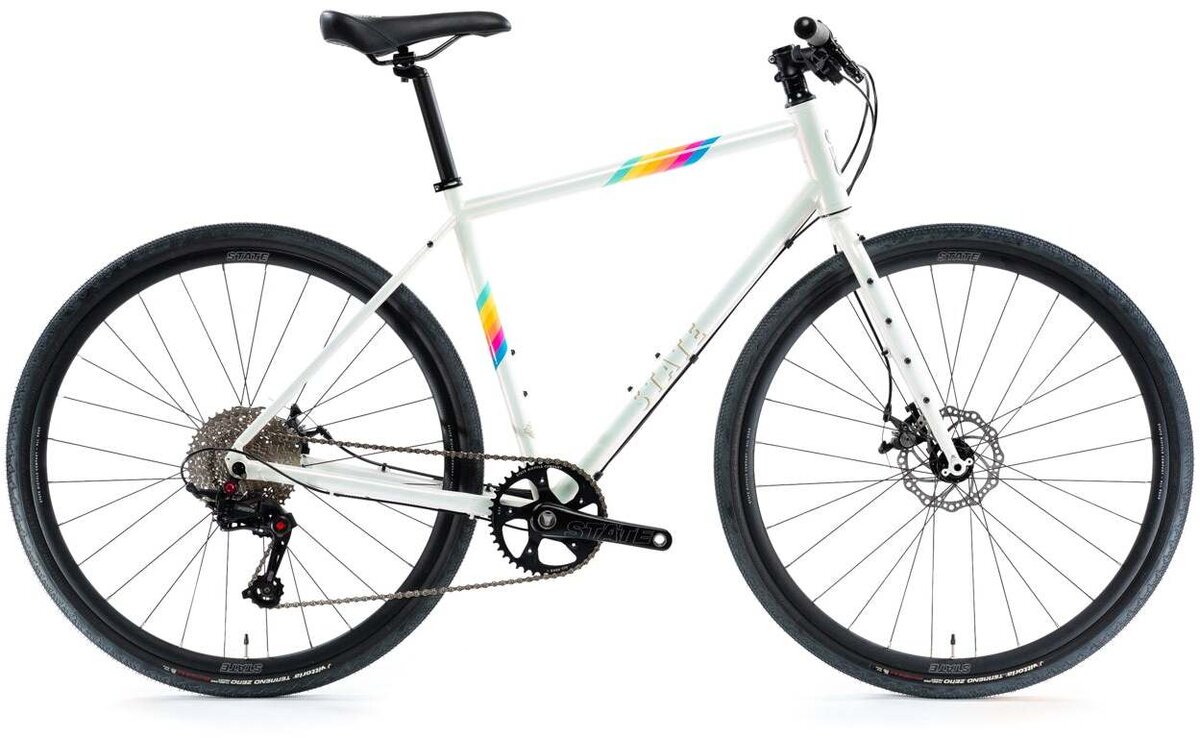

The 4130 All-Road Flat Bar offers the benefits an advanced commuter / all-arounder at an accessible price. It features a rugged 4130 Chromoly steel frame and fork with plenty of cargo mounts, thru-axle wheels (700c with semi aggressive tires or 650b with knobby tires), 11-speed drivetrain, and disc brakes. This is our most capable bike ever! Make it 2-bikes-in-1 by purchasing another wheel set for easy back-and-forth switching between 700c and 650B.
*Pricing includes full professional assembly and Tune Up.
|C. Standover (700c / 650B)||743mm / 735mm||772mm / 764mm||798mm / 790mm||827mm / 819 mm|
|D. Effective Top tube||510mm||535mm||550mm||575mm|
|E. Head Tube Angle||70.5||71||71.5||71.5|
|F. Head Tube Length||125mm||145mm||165mm||185mm|
|G. Seat Tube Angle||75||74.5||73.5||73|
|H. Seat Tube Length||430mm||470mm||510mm||550mm|
|I. Bottom Bracket Height||268mm||268mm||268mm||268mm|
|J. Bottom Bracket Drop||75mm||75mm||75mm||75mm|
|K. Fork Rake/Offset||50mm||50mm||50mm||50mm|
|O. Chainstay Length||450mm||450mm||450mm||450mm|
|Frame||4130 Chromoly Steel; Tire Clearance Frame (650B / 700c) : 53c / 45c|
|Fork||4130 Chromoly Steel; 1 1/8 threadless steerer|
|Wheels||Aluminum Wheel Set (650b / 700c)|
|Rims||Rim Depth: 24mm; Rim Width: 19mm (internal) / 24mm (external); tubeless capable; 28H double wall|
|Hubs||Sealed Bearing; Front: 12x100 THRU-AXLE; Rear: 12x142 THRU-AXLE; 6- Bolt|
|Spokes||14G Stainless Steel|
700c: Vittoria Terreno Zero 38c (Tubeless)
650B: Vittoria Barzo 2.1"
|Bottom Bracket||Hollow Axle BSA 68mm|
|Crankset||State Bicycle Co. All-Road 1; Forged 7075 Aluminum; Crank Arm Length: XS/S: 170mm, M/L 175mm|
|Chainrings||State Bicycle Co. All-Road 1; Forged 6061 Aluminum; 42T; 110 BCD|
|Shifters||State Bicycle Co. All-Road 1 1x11|
|Cassette/Freewheel||SBC 11-42T 11 speed|
|Chain||YBN 11 Speed|
|Brakes||Promax DSK-300R Flat Mount (Mechanical)|
|Handlebars||State Bicyce Co. All Road Flat Bars - Aluminum OS 31.8mm|
|Stem||Alloy 3D Forged; Clamp Diameter: 31.8mm; Length: XS/S: 90mm, M: 100mm, L: 110mm; Rise: +/- 7 degree|
|Headset||FSA ZS-4D 1 1/8" threadless|
|Seatpost||Alloy; Diameter: 27.2mm; Length: 350mm|
|Saddle||State All-Road; Polyurethane; Steel Rails|
* Subject to change without notice.
